Regulated Switchmode Laboratory PSU ( 0-15VDC 0-40A)

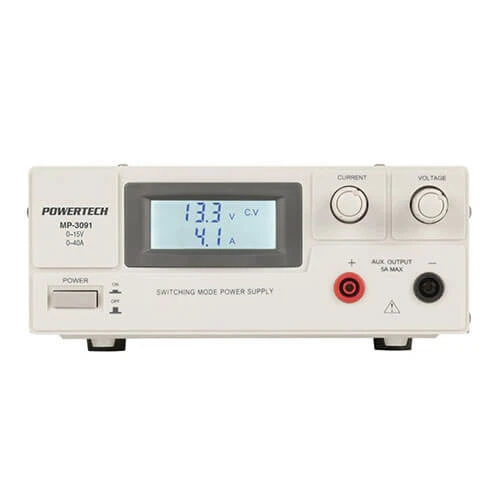

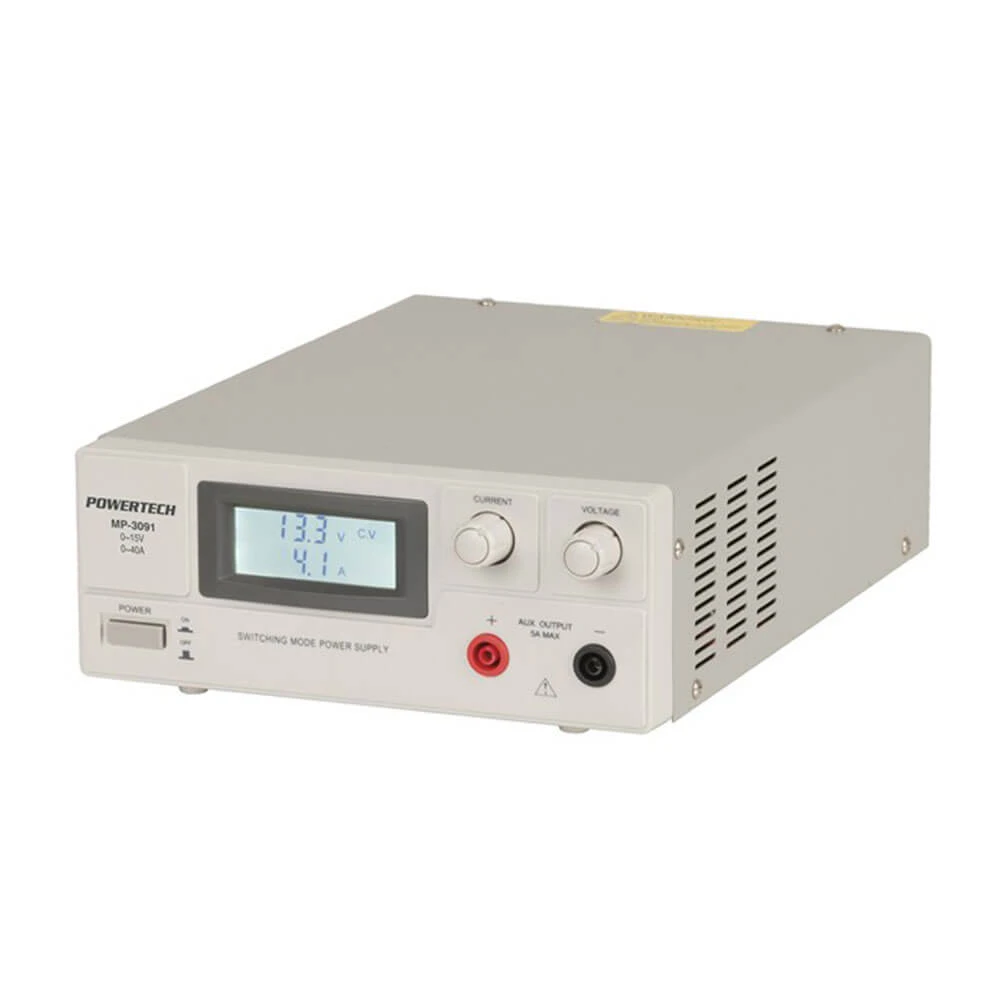

A good lab power supply is a must-have for any serious hobby bench. This one provides the flexibility of wide voltage range and current limiting. A large backlit LCD provides feedback. Thoughtful design makes this unit very functional. While it’s capable of up to 40A, if you’re only using up to 5A, handy banana sockets are provided on the front panel. If you need up to 40A, heavy duty binding posts are provided at the rear of the unit. The lightweight switchmode design means you can move it around as required, while voltage ripple is kept below 100mV. Mains power cable included.

Features:

• 0-15V variable output voltage
• 0-40A variable current limiting
• Overload and over temperature protected
• Input: 220V-240V @ 50Hz
• Fuse: 250V @ 6A
• Variable Output Voltage: 0-15V
• Variable Output Current Limiting: 0-40A
• Ripple & Noise (Peak-Peak) Voltage: 100mV
• Protections: Overload & Over Temperature
